What a CCTV Drain Survey Finds in Older Manchester Properties

Manchester’s housing stock tells the story of 150 years of industrial growth, suburban expansion, and post-war rebuilding. Every era used different pipe materials and construction methods, and each comes with its own set of drainage problems. If you own — or are buying — an older property in Greater Manchester, understanding what a CCTV drain survey is likely to find gives you a realistic picture of what you are dealing with.

This guide is based on what we actually see on surveys across Manchester, organised by the age of the property. Not every older property will have problems, but the patterns are consistent enough that we can tell you what to watch for.

Victorian Properties (Pre-1900)

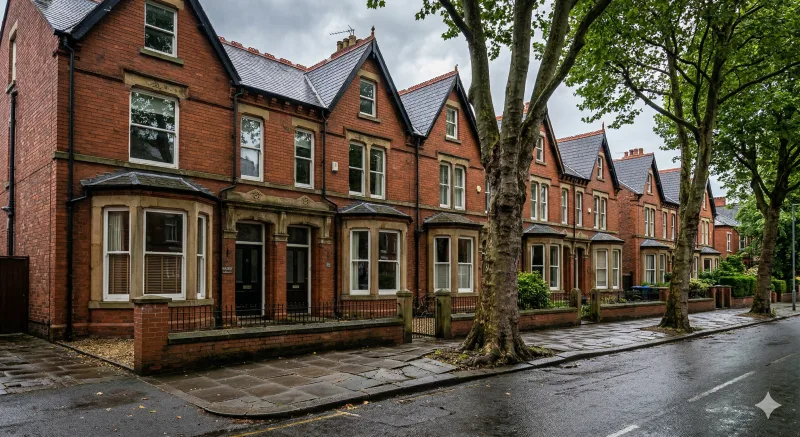

Victorian terraces make up a significant portion of Manchester’s inner-city housing. You will find them across Longsight, Levenshulme, Rusholme, Moss Side, Hulme, Chorlton-on-Medlock, Ardwick, and large parts of Salford. Many were originally built as workers’ housing during Manchester’s industrial boom and have been in continuous use for well over a century.

Pipe Materials

Victorian drainage typically used salt-glazed clay pipes — often hand-thrown rather than machine-made, which means variations in bore diameter and wall thickness. Joints were sealed with lime mortar, sometimes augmented with rope or oakum packing. These joints were never watertight by modern standards, and after 120+ years, the mortar has often deteriorated completely.

Some larger Victorian properties and those on corner plots may have brick barrel drains — egg-shaped or circular channels constructed from engineering bricks, laid in mortar. These served as the main combined sewer for a group of properties. Brick barrel drains can be impressive feats of Victorian engineering, but they are also prone to mortar degradation, brick spalling, and eventual structural failure.

Common Defects

Displaced joints are the single most common finding in Victorian drainage. Ground settlement over a century or more gradually shifts pipe sections out of alignment. The result is a step at the joint — sometimes just a few millimetres, sometimes enough to create a significant obstruction. Every displaced joint is also a potential entry point for roots and soil.

Root ingress is widespread, particularly where Victorian terraces have even modest back gardens. Any crack or gap in a pipe joint acts as a water source for nearby roots. Once roots enter the pipe, they grow rapidly in the nutrient-rich environment, creating a dense mass that traps debris and causes blockages. We regularly find root intrusion in properties across south Manchester where mature trees line the back streets.

Fractured pipes are common where ground loading has changed — a new extension built over a drain run, a driveway laid where there was previously a garden, or simply decades of traffic vibration on a main road. Clay pipe is brittle, and once a fracture starts, it tends to propagate.

Brick barrel drain deterioration shows up as mortar loss between bricks, individual bricks displaced or fallen into the channel, root ingress through mortar joints, and in severe cases, partial or full collapse. These repairs are among the most expensive because the structures are deep, large, and difficult to access.

Combined sewer systems are standard in Victorian areas. Foul water and surface water share the same pipes, which means higher flow volumes, greater risk of surcharging in heavy rain, and faster wear on the system. During a Manchester downpour, combined sewers can back up, causing flooding at ground level — particularly in low-lying areas near the Irwell and Medlock.

What to Expect from a Survey

On a Victorian property survey, we typically find between three and eight defects ranging from minor (cosmetic cracking, slight joint displacement) to significant (root masses, partial collapses). A completely clean survey on a Victorian property is unusual — most will have at least some age-related deterioration. The key is identifying which defects need immediate attention and which can be monitored.

Edwardian and Interwar Properties (1900–1939)

This era covers the suburban expansion of Manchester — the semi-detached houses and short terraces built across Burnage, Fallowfield, Withington, Whalley Range, Chorlton, Heaton Moor, and the established parts of Sale, Stretford, and Urmston. These properties were typically built to a higher standard than their Victorian predecessors, with better-quality materials and more regulated construction.

Pipe Materials

Machine-made salt-glazed clay pipes are standard for this era — more consistent in quality than Victorian hand-thrown pipes, with cement mortar joints replacing the earlier lime mortar. Cement joints are more durable, but after 80–120 years, they too can crack and deteriorate.

Cast iron pipes were commonly used where drains passed through or under buildings — under cellar floors, through external walls, and in above-ground soil stacks. Cast iron has a finite life. It corrodes from the inside out, gradually thinning the pipe wall until it cracks. Internal corrosion also creates a rough surface that catches debris and promotes blockages.

Stoneware gullies and inspection chambers from this period are generally robust but can develop cracks and mortar failure at connections.

Common Defects

Root ingress is the dominant finding in this era of housing. Interwar properties typically have larger gardens than Victorian terraces, with mature trees and established hedgerows. Seventy, eighty, or ninety years of growth means extensive root systems that have had decades to find and exploit any weakness in the drainage.

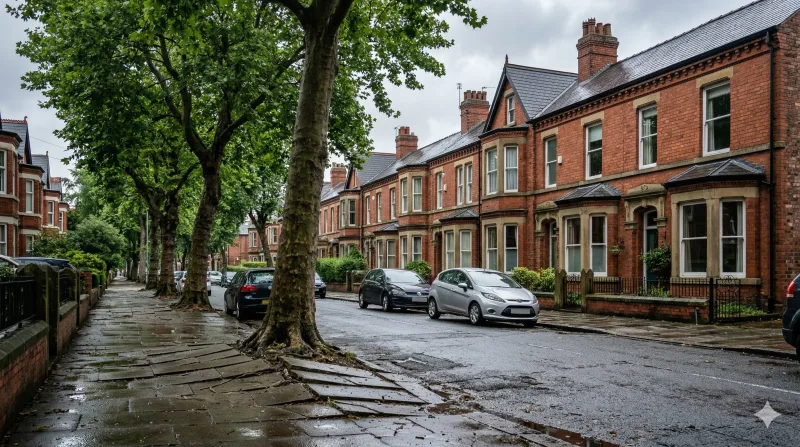

Properties in Didsbury, Chorlton, and Withington are particularly affected. Many of these streets are lined with mature sycamores, limes, and chestnuts — and the roots extend well beyond the tree canopy. A large tree fifteen metres from a drain run can still send roots into pipe joints.

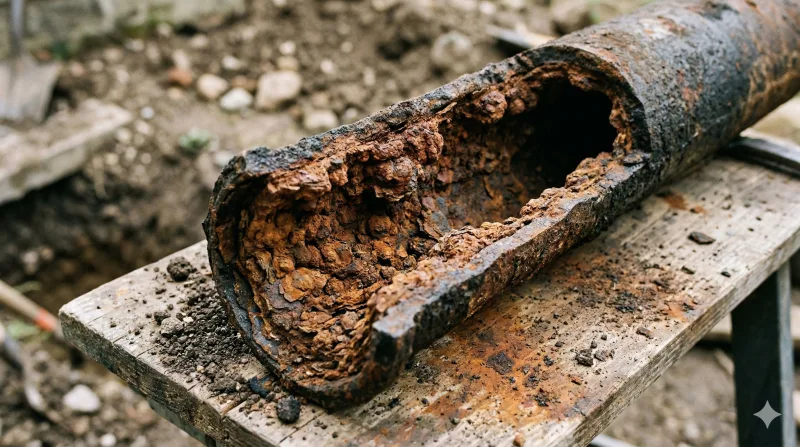

Cast iron corrosion is another frequent finding. The internal surface of cast iron pipes develops heavy scale over time, reducing the bore and restricting flow. Eventually, the pipe wall thins to the point where it cracks. We regularly find corroded and failing cast iron sections under the floors of 1920s and 1930s properties — typically where the internal drainage connects to the external clay pipe system.

Shallow drainage was common in interwar construction, with pipes sometimes laid at depths of only 300-450mm below ground level. Shallow pipes are more susceptible to damage from ground loading, frost heave, and root penetration. They are also more easily damaged by later garden work — we have seen clay pipes cracked by fence post installations, tree planting, and even deep rotovating.

Joint deterioration is present but typically less severe than in Victorian properties, because the cement mortar joints were more durable. However, any joint that has cracked becomes a root entry point, and once roots enter, the damage accelerates.

If you own or are buying an Edwardian or interwar property in Manchester, a CCTV drain survey will identify whether root ingress or pipe deterioration is affecting your drainage. Book a survey and find out before a blockage or collapse forces your hand.

Post-War Housing (1940s–1970s)

This era covers a huge range of Manchester housing — from council estates built during the post-war housing drive to private developments from the 1960s and 1970s. Key areas include Wythenshawe, parts of Harpurhey and Blackley in north Manchester, Langley in Middleton, and various estates across Salford, Tameside, and Oldham.

Pipe Materials

This is where things get interesting — and not in a good way.

Pitch fibre pipes were used extensively from the late 1940s through to the early 1980s. Made from wood cellulose impregnated with coal tar pitch, these pipes were cheap, lightweight, and easy to install. They were widely promoted as a modern alternative to clay. The problem is that pitch fibre absorbs moisture over time, causing the pipe wall to soften, blister, and eventually deform. The technical term for what happens is “delamination” — the internal layers of the pipe peel away, creating obstructions that trap debris and cause blockages.

Pitch fibre is, without exaggeration, the worst pipe material ever widely used in UK domestic drainage. If your Manchester property was built between approximately 1950 and 1982, there is a substantial chance that some or all of the drainage is pitch fibre.

Concrete pipes were also used during this period, particularly in larger-diameter applications and on council estates. Concrete is more durable than pitch fibre but can crack at joints and is susceptible to chemical attack from acidic soil or industrial waste — a relevant factor in parts of Manchester with industrial heritage.

Early PVC pipes began appearing in the 1970s but were not widely used in domestic drainage until the 1980s. Early PVC can become brittle with age, particularly if exposed to UV light before being buried.

Common Defects

Pitch fibre deformation is the headline finding. On camera, you can see the pipe bore reduced by blisters and delaminated material. In moderate cases, the bore might be reduced by 30-50%. In severe cases, the pipe has effectively closed up, with only a small gap remaining for water to pass through. These pipes will block — it is a matter of when, not if.

Pitch fibre collapse occurs when the deformation has progressed to the point where the pipe can no longer support the weight of the soil above it. The pipe flattens, either partially or completely. A fully collapsed pitch fibre pipe requires excavation and replacement — re-lining is not always possible once the pipe has lost its circular profile.

Joint displacement in concrete pipes is common, particularly on sloping sites where ground movement has occurred. Concrete pipe joints were typically sealed with a bituminous compound or a cement mortar, neither of which provides much flexibility.

Inadequate fall is a surprisingly common finding in post-war drainage. Some sections were installed with insufficient gradient to maintain self-cleansing velocity, leading to persistent sediment build-up and slow drainage. Whether this was due to poor workmanship, site constraints, or settlement after installation varies, but the result is the same.

What to Expect from a Survey

Post-war property surveys tend to produce one of two outcomes: either the system has been updated at some point (pitch fibre replaced with PVC, for example) and is in reasonable condition, or it retains original pitch fibre drainage that is showing significant deterioration. The survey findings directly determine whether the drainage needs immediate investment.

Modern Properties (1980s Onwards)

Modern properties across Manchester use PVC and uPVC pipes with push-fit rubber ring joints. These materials are inherently resistant to root ingress, chemical attack, and corrosion. A well-installed modern drainage system should last 50-100+ years.

Common Defects

Poor installation is the most frequent finding. Modern pipes are easy to install — perhaps too easy. Not every builder takes the care needed to ensure correct falls, proper bedding, and secure joint assembly. We regularly find:

• Bellied (sagging) sections where pipes were laid on uncompacted backfill that has subsequently settled, creating a low point that holds standing water and collects sediment
• Inadequate falls where the gradient is too shallow to maintain flow
• Loose joints where push-fit connections were not fully engaged, creating a gap that allows root entry and soil infiltration
• Incorrect connections — surface water connected to the foul sewer or vice versa, which is both a regulatory issue and a functional problem

Damage from later work is also common. Extensions, conservatories, driveways, and landscaping all involve ground disturbance, and drains get damaged during the process. We have found pipes cracked by mini-digger buckets, crushed by poorly placed soakaways, and severed by foundation trenches.

Root ingress at rubber ring joints occurs occasionally, particularly where large trees are close to pipe runs. Modern rubber seals are more resistant than mortar joints, but they are not impervious, especially if the joint was not assembled correctly.

Common Defect Types Explained in Plain English

Regardless of the age of the property, the same core defect types appear repeatedly. Here is what they mean in practical terms.

Displaced joint: Two sections of pipe have moved relative to each other, creating a step or gap. Water still flows, but debris catches on the step, and roots or soil can enter through the gap. Severity depends on the degree of displacement.

Fracture: A crack in the pipe wall. Can be circumferential (around the pipe), longitudinal (along the pipe), or a combination. Minor fractures may be stable. Major fractures can lead to collapse.

Collapse: Part or all of the pipe has caved in. Partial collapses reduce flow. Full collapses stop it entirely. Always requires repair.

Root ingress: Plant roots have entered the pipe, usually through a joint or crack. Can range from a few fine roots (minor) to a dense root mass filling the pipe (severe).

Belly / sag: A section of pipe has dropped, creating a low point where water pools. Sediment collects in the pooled water, gradually reducing flow. Eventually causes blockages.

Scale / encrustation: Build-up of calcium, iron, or other mineral deposits on the internal pipe surface. Common in cast iron and some clay pipes. Reduces bore and catches debris.

Infiltration: Groundwater entering the pipe through defects. Indicates that the pipe is below the water table and joints or cracks are not watertight. Can overload the system and cause surcharging.

Why This Matters

Understanding what a survey is likely to find helps you make informed decisions. If you are buying a Victorian terrace in Levenshulme, you should expect to see some age-related deterioration — the question is whether it is minor and manageable or severe and expensive. If you are buying a 1960s property in Wythenshawe, pitch fibre pipes are a real possibility, and knowing that in advance is far better than discovering it when they block.

A CCTV drain survey takes the guesswork out of it. You get a clear, recorded view of every pipe beneath your property, with professional assessment of what each defect means and what — if anything — needs to be done about it.

Whether your Manchester property is Victorian, interwar, post-war, or modern, a CCTV drain survey tells you exactly what is going on underground. Book your survey and get the full picture — we survey properties across all of Greater Manchester and provide detailed reports with clear, practical recommendations.
